Grande capacità di tenuta della polvere H13 5μM Aluminum Bag Filter giallo
Dettagli:
| Luogo di origine: | La Cina |
| Marca: | LESITE |
| Certificazione: | CE |
| Numero di modello: | Filtro a sacco di alluminio |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | Negozii |
|---|---|
| Prezzo: | Negotiate |
| Imballaggi particolari: | imballaggio dell'esportazione |
| Tempi di consegna: | 5-8 giorni dopo il deposito |
| Termini di pagamento: | T/T, L/C |
| Capacità di alimentazione: | un ² da 5000 m. al mese |
|
Informazioni dettagliate |
|||
| Efficienza: | 99,97%, H13~H14 | Max Humidity: | 100% |
|---|---|---|---|
| Dimensione: | Su misura | Materiale: | Vetroresina |
| max.humidity: | 100% | Spessore facoltativo: | Di alluminio/GI: 21, 25, 46; Plastica: 25 |
| Pagina: | lega di alluminum | Uso: | Dell'aria da stato filtro pre |
| Evidenziare: | filtro a sacco di alluminio di 5μm,Filtro a sacco di alluminio H13,Filtro dalla tasca H13 |
||
Descrizione di prodotto

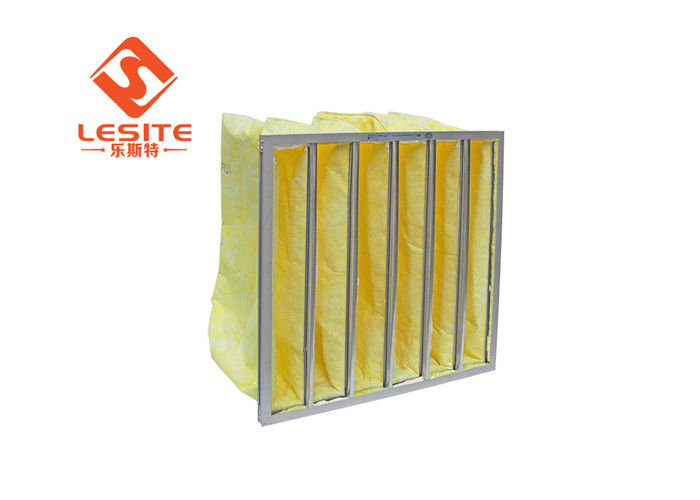

Synthetic Fiber Media Aluminum Bag Filter Large Dust Holding Capacity
1.Product Specification: Pocket/Bag Filter is widely applied to the air conditioning system as intermediate filtration. It is mainly used to remove dust particles of 1-5μm in industrial factory. Bag filter is made of high quality non-woven filter media, with the advantages of small resistance and large air volume. The types of bag filter are bag type, panel type and combination type available.
2.Low Resistance: Special fiber material and reasonable structure make the bag filter with maximum wind speed.
3. Stable Performance: The chemical filter fiber of bag filter is hard to be influenced by the static. As long as the filter material is not damaged, the cleaning efficiency is as the same as it is produced.
4. Versatility: The structure and size of the bag filter is in line with the one of international accepted standard. Therefore, it is suitable for most ventilation systems of central air conditioning and central fan system
Application of product
Pre-filtration of air conditioning and ventilation systems to avoid ash pollution inside the system
Pre-filtration of large air compressor
Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high efficiency filter in the rear section
Ventilation system for general industrial plants to meet general cleaning requirements for air
Rough dust filtration system of air conditioning in general construction building
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
